Winches Superwinch 1508

Superwinch

1508

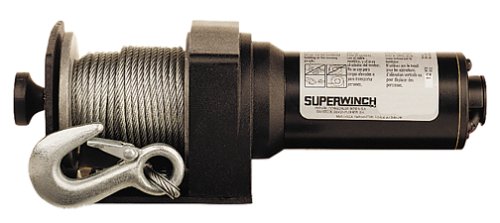

Superwinch 01508 T1500 T-Series .71-horsepower Trailer Winch - 1,500-Pound Capacity

EAN: 0022705150804

UPC: 022705150804

Winches


12-Volt DC winch with a capacity to pull 1,500-lbs
Wire rope measures 25' x 5/32", includes latched hook
Rotary-style remote mounted switch; wireless remote control optional
Dimensions measure 11.9"l. x 3.9"d. x 4.1"h; 12-lbs
Freespooling

This compact, economy winch is designed for light-duty winching around the house, boatyard, workshop, or garage. It powers loads in and out, it has a free-spooling clutch for a faster cable payout, and features a convenient remote mounted switch. A tension plate helps keep the 25-ft cable level when winding.
The Superwinch T1500 T-Series Trailer Winch is designed for fast-and-easy installation, and is the perfect choice when performance and value are your main goals. This compact winch with remote mounted switching is ideal for your light-duty winching applications around the house, garage, boatyard, or workshop. This winch is equipped with a permanent magnet motor and is ideal for general use. The Freespool Clutch is operated by a pull-and-turn knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power.

The Superwinch features a wire rope tensioning plate to reduce backlash and snarling when pulling out the rope, and full load mechanical and dynamic brake for added safety. The T1500 incorporates a high-efficiency remote mounted draw motor, and a remote switch allows a wide variety of mounting options. This winch includes a 25-foot galvanized wire rope with thimble end and a latched hook.



Superwinch Brand: Power when you need it, where you need it.

Multiple Uses: The ideal light-duty choice around the house, garage, boatyard, or workshop.

   Standard Features

   Powers Load IN and OUT

   Dynamic Brake

   Full-metal Planetary Gear-train

   Freespooling Clutch for Fast Wire Rope Payout

   High Efficiency Remote Mounted Draw Motor

   Convenient Remote Mounted Switch

   Circuit Breaker Protected

   25' Galvanized Wire Rope with Thimble End and Latched Hook

   Performance 12VDC (1st layer on drum)

   Line Pull
   lbs./kg

Line Speed
FPM (m/m)

Motor
Amps

                  0

14.5 (4.4)

  8

      500 (227)

11.3 (3.4)

30

   1,000 (454)

  8.5 (2.6)

60

   1,500 (680)

  5.2 (1.6)

90

   Specifications

   Rated Line Pull (Single Line)

1,500 lb. (680 kg)

   Motor

0.71 horsepower

   Gearing

Differential Planetary

   Gear Ratio

153:1

   Freespooling Clutch

Pull and Turn

   Braking Action

Dynamic

   Wire Rope

5/32" x 25' (3.9mm x 7.6m) with Latched Hook

   Dimensions

12.5"l. x 3.9"d. x 4.1"h.

(317.5mm l. x 100mm d. x 104mm h.)

   Drum Diameter

1.25" (31.8mm)

   Drum Length

2.9" (73.6mm)

   Weight

12 lb. (5.4kg)

   Switching Method

Rotary Switching

   Roller Fairlead

Optional

   Color-Coded Wiring

Yes

   Wireless Remote Control

Optional
